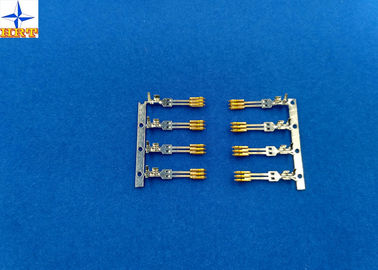

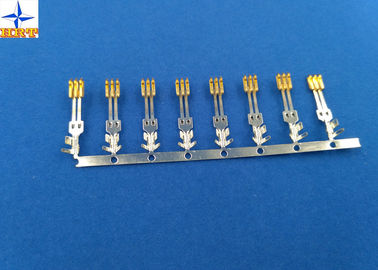

Ptich 1.27mm Wire Connector Terminals, SATA crimp terminals With Phosphor Bronzne Material

চীন Ptich 1.27mm Wire Connector Terminals, SATA crimp terminals With Phosphor Bronzne Material সরবরাহকারী
Ptich 1.27mm Wire Connector Terminals, SATA crimp terminals With Phosphor Bronzne Material সরবরাহকারী Ptich 1.27mm Wire Connector Terminals, SATA crimp terminals With Phosphor Bronzne Material সরবরাহকারী Ptich 1.27mm Wire Connector Terminals, SATA crimp terminals With Phosphor Bronzne Material সরবরাহকারী

বড় ইমেজ :  Ptich 1.27mm Wire Connector Terminals, SATA crimp terminals With Phosphor Bronzne Material

পণ্যের বিবরণ:

Place of Origin: dongguan, China(mainland)
পরিচিতিমুলক নাম: HRT
সাক্ষ্যদান: ISO9001/ ISO14001/UL/RoHS/REACH
Model Number: A3800-T

প্রদান:

Minimum Order Quantity: 75K PCS
মূল্য: Negotiated
Packaging Details: paper tray with out carton
Delivery Time: 5 to 8 working days after payment checked
Payment Terms: TT, Western Union, PayPal, L/C
Supply Ability: 100 million pcs per month
বিস্তারিত পণ্যের বর্ণনা
Pitch: 1.27mm wire range: AWG#18 - #22
Material: Phosphor Bronzne Finish: Gold-plated
Connector Type: wire connnector Terminal Insulation O.D: 2.10mm(Max)
লক্ষণীয় করা:

Crimp Terminal Connector

,

Crimp Wire Connectors

Ptich 1.27mm Wire Connector Terminals A3800-T With Phosphor Bronzne Material



1, The specification of the product including basic size information, electrical and mechanical properties.



Basic size information
Termination Interface Style crimp or compression
Processing methods E-stamping before gold-plated
Insulation O.D. 2.10mm(Max)
Part No. A3800-G3PE or A3800G5PE
Application signal

Electrical properties
Current Rating 1.5A AC, DC
Voltage Rating 15V AC, DC
Contact Resistance 20mΩ Max
Insulation Resistance 1000mΩ min
Withstanding Voltage 500V AC/minute

Mechanical properties
Temperature range -25℃ to 85 ℃
Other information please kindly check the following picture.






2, Related drawing and report



The following pictures are engineering drawing and testing report for your reference, wish these can help you to purchase the ideal and right parts from us. Thank you!

Ptich 1.27mm Wire Connector Terminals, SATA crimp terminals With Phosphor Bronzne Material



1. Scope

This specification covers the requirements for product performance of SATA 1.27mm pitch pothook connectors series.





2. Construction,Dimensions,Material & Plating

See the attached drawings





3. Ratings & Applicable Wires



Item Standard
Rated Voltage (Max.) 15V AC/DC Insulation O.D. 2.10mm (Max.)
Rated Current (Max.) And Applicable Wires AWG#18 1.5A AC/DC
AWG#20 1.5A AC/DC
AWG#22 1.5A AC/DC
Ambient Temperature Range -25℃ ~ +85℃*

*: Including terminal temperature rise





4. Electrical Performance



Test Description Procedure Requirement
4-1



Contact Resistance



Mate connectors, measure by dry circuit, 20mV Max., 10mA.(Based upon JIS C5402 5.4) 20mΩ (Max.)
4-2 Insulation Resistance Mate connectors, apply 500V DC between adjacent terminal or ground. (Based upon JIS C5402 5.2/MIL-STD-202 Method 302 Cond. B) 1000MΩ (Min.)
4-3 Dielectric Withstanding Voltage Mate connectors, apply 500V AC (rms) for 1 minute between adjacent terminal or ground. (Based upon JIS C5402 5.1/MIL-STD-202 Method 301) No Breakdown.
4-4 Contact Resistance on Crimped Portion Crimp the applicable wire on to the terminal, measure by dry circuit, 20mV (Max.)., 10mA. 10mΩ (Max.)





5. Mechanical Performance



Test Description Procedure Requirement
5-1 Actuator Insertion & Withdrawal Force Insert and withdraw actuator at the speed rate of 25±3mm / minute. Refer to paragraph 7
5-2 Crimping Pull Out Force Fix the crimped terminal, apply axial pull out force on the wire at the speed rat of 25±3mm / minute.(Based upon JIS C5402 6.8) AWG#18 6.0 kgf (Min.)
AWG#20 5.0 kgf (Min.)
AWG#22 4.0 kgf (Min.)
5-3 Terminal Insertion Force. Insert the crimped terminal into the housing. 0.80 kgf (Max.)
5-4 Terminal/Housing Retention Force. Apply axial pull out force at the speed rate of 25±3mm / minute on the terminal assembled in the housing. 3.00 kgf (Min.)
5-5 Durability When mated up to 50 cycles repeatedly by the rate of 10 cycle per minute. Contact Resistance 40mΩ (Max.)
5-6 Vibration

Amplitude: 1.5mm P-P

Sweep time: 10-55-10 Hz in 1 minute Duration: 2 hours in each X.Y.Z. axes.

(Based upon MIL-STD-202 Method 201A)

Appearance No Damage.

Contact Resistance 40mΩ (Max.)

Discontinuity 1 μsec.(Max.)

5-7 Physical Shock 490m/s²{50G},3 strokes in each X.Y.Z. axes. (Based upon JIS C0041/MIL-STD-202 Method 213B Cond. A)





6. Environmental Performance And Others



Test Description Procedure Requirement
6-1 Temperature Rise Carrying rated current load.(Based upon UL 498) 30℃(Max.)
6-2 Heat Resistance 85±2℃,96 hours (Based upon JIS C0021/MIL-STD-202 Method 108A Cond. A)

Appearance No Damage.

Contact Resistance 40mΩ (Max.)

6-3 Cold Resistance -25±3℃,96 hours (Based upon JIS C0020)
6-4 Humidity

Temperature: 40±2℃

Relative Humidity : 90~95%

Duration: 96 hours

(Based upon JIS C0022/MIL-STD-202 Method 103B Cond. B)

Appearance No Damage.

Contact Resistance 40mΩ (Max.)

Insulation Resistance 100MΩ (Min.)

Dielectric Withstanding Voltage Must meet 4-3

6-5 Temperature Cycling

5 cycles of:

a) -55℃ 30 minutes

b) +85℃ 30 minutes

(Based upon JIS C0025)

Appearance No Damage.

Contact Resistance 40mΩ (Max.)

6-6 Salt Spray Tin-plated 12 hours / Gold- plated 24 hours exposure to a salt spray from the 5±1% solution at 35±2℃. (Based upon JIS C0023/MIL-STD-202 Method 101D Cond. B)
6-7 Solder-ability

Soldering Time: 5±0.5 sec.

Solder Temperature: 245±5℃

Solder Wetting 95% of immersed area must show no voids, pin holes
6-8 Resistance to Soldering Heat

Solder pot method

Soldering time: 10±0.5 sec.

Solder Temperature: 260±5℃

Solder iron method

Soldering Time: 5±0.5 sec.

Solder Temperature: 370℃ ~ 400℃

Appearance No Damage.



7. Actuator Insertion/Withdrawal Force

[Unit : kgf]

Circuits At Initial
Insertion (Max.) Withdrawal (Min.)
- 4.50 1.00







3, Application fied of product

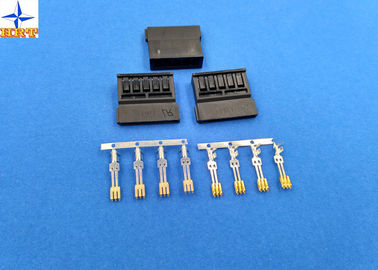

The terminal will be used with the A3800 series housing, and the will work together to perfomance well

in current and signal transmission.



4, FAQ


Q:Do you allow multiple design per setup?
A:Yes.We accept OEM/ODM service and allow multiple design per setup.

Q:How long does shipping take?
A:It depends on the destination location and quantity. In most developed country, delivery by Fed x/UPS/DHL is normally 2-3 days(excluding weekends).

Q: How is the goods packaged ?
A: Usually in PE bads, tube, pipe and with outside carton box.



5, we can offer multiple, safe and fast shippment for you!



We have very good cooperation with world famouse delivery company, and the can offer us good service and favorable price. It's sure that every business between us will be fast and happy. Choose us! Let's connect the realistic and electronic world.
