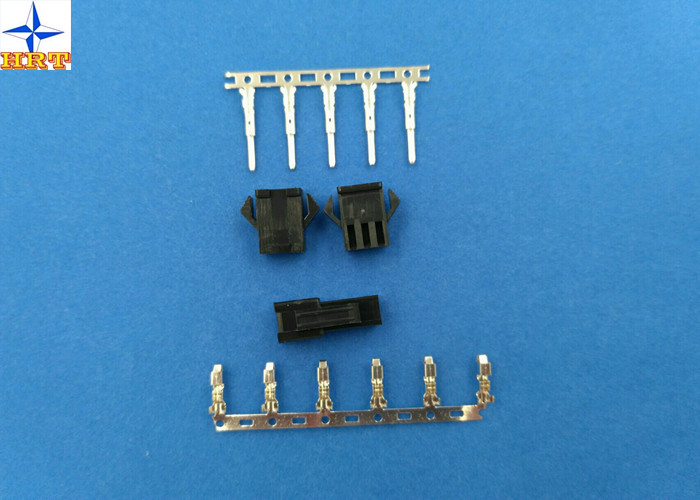

ISO Wire To Wire Connector Terminals 2.50mm Pitch Connector Crimp Terminal

ISO Wire To Wire Connector Terminals 2.50mm Pitch Connector Crimp Terminal

    • ISO Wire To Wire Connector Terminals 2.50mm Pitch Connector Crimp Terminal
    • ISO Wire To Wire Connector Terminals 2.50mm Pitch Connector Crimp Terminal
    • ISO Wire To Wire Connector Terminals 2.50mm Pitch Connector Crimp Terminal
  • ISO Wire To Wire Connector Terminals 2.50mm Pitch Connector Crimp Terminal

    পণ্যের বিবরণ:

    Place of Origin: Dongguan, China(mainland)
    পরিচিতিমুলক নাম: HRT
    সাক্ষ্যদান: ISO9001/ ISO14001/UL/RoHS/REACH
    Model Number: C2505F-T

    প্রদান:

    Minimum Order Quantity: 35K PCS
    মূল্য: Negotiated
    Packaging Details: paper tray with out carton
    Delivery Time: 5 to 8 working days after payment checked
    Payment Terms: TT, Western Union, PayPal, L/C
    Supply Ability: 100 million pcs per month
    এখন যোগাযোগ
    বিস্তারিত পণ্যের বর্ণনা
    Pitch: 2.50mm wire range: AWG#22 - #28
    Material: Brass Finish: Tin-plated
    Type: Crimp Terminal Insulation O.D: 1.80mm(Max)
    লক্ষণীয় করা:

    Crimp Terminal Connector

    ,

    Connector Crimp Terminal


    Wire Connector Terminals Brass 1.80mm Insulation for SM Series Housing

    1, The specification of the product including basic size information, electrical and mechanical properties.


    Basic size information
    Termination Interface Stylecrimp or compression
    Processing methodsE-stamping before tin-plated
    Insulation O.D.1.80mm(Max)
    Part No.C2505F-TBE
    Applicationsignal

    Electrical properties
    Current Rating3A AC, DC
    Voltage Rating250V AC, DC
    Contact Resistance10mΩ Max
    Insulation Resistance500MΩ min
    Withstanding Voltage1500V AC/minute

    Mechanical properties
    Temperature range-25℃ to 85 ℃
    Other information please kindly check the following picture.




    2, Related drawing and report

    The following pictures are engineering drawing and testing report for your reference, wish these can help you to purchase the ideal and right parts from us. Thank you!
    ISO Wire To Wire Connector Terminals 2.50mm Pitch Connector Crimp Terminal
    ISO Wire To Wire Connector Terminals 2.50mm Pitch Connector Crimp Terminal
    3. Ratings & Applicable Wires


    ItemStandard
    Rated Voltage (Max.)250V AC/DCInsulation O.D. 1.80mm (Max.)
    Rated Current (Max.) And Applicable WiresAWG#223.0A AC/DC
    AWG#242.5A AC/DC
    AWG#262.0A AC/DC
    AWG#281.5A AC/DC
    Ambient Temperature Range-25℃ ~ +85℃*

    *: Including terminal temperature rise


    4. Electrical Performance


    Test DescriptionProcedureRequirement
    4-1


    Contact Resistance


    Mate connectors, measure by dry circuit, 20mV max., 10mA.(Based upon JIS C5402 5.4)10mΩ (Max.)
    4-2Insulation ResistanceMate connectors, apply 500V DC between adjacent terminal or ground. (Based upon JIS C5402 5.2/MIL-STD-202 Method 302 Cond. B)500MΩ (Min.)
    4-3Dielectric Withstanding VoltageMate connectors, apply 1500V AC (rms) for 1 minute between adjacent terminal or ground. (Based upon JIS C5402 5.1/MIL-STD-202 Method 301)No Breakdown.
    4-4Contact Resistance on Crimped PortionCrimp the applicable wire on to the terminal, measure by dry circuit, 20mV (Max.)., 10mA.5mΩ (Max.)



    3, FAQ
    Q:Do you allow multiple design per setup?
    A:Yes.We accept OEM/ODM service and allow multiple design per setup.
    Q:How long does shipping take?
    A:It depends on the destination location and quantity. In most developed country, delivery by Fed x/UPS/DHL is normally 2-3 days(excluding weekends).
    Q: How is the goods packaged ?
    A: Usually in PE bads, tube, pipe and with outside carton box.

    4, we can offer multiple, safe and fast shippment for you!
    We have very good cooperation with world famouse delivery company, and the can offer us good service and favorable price. It's sure that every business between us will be fast and happy. Choose us! Let's connect the realistic and electronic world.
