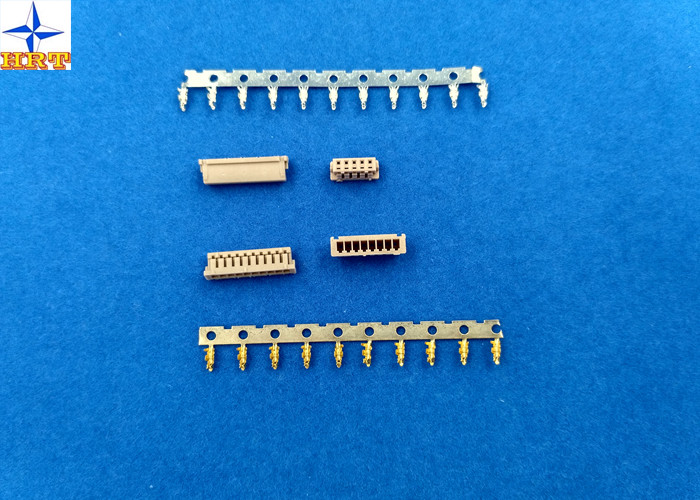

1.25mm Pitch Miniature Crimping Connector UL-listed Grey Color Lvds Display Connector

1.25mm Pitch Miniature Crimping Connector UL-listed Grey Color Lvds Display Connector

    • 1.25mm Pitch Miniature Crimping Connector UL-listed Grey Color Lvds Display Connector
    • 1.25mm Pitch Miniature Crimping Connector UL-listed Grey Color Lvds Display Connector
    • 1.25mm Pitch Miniature Crimping Connector UL-listed Grey Color Lvds Display Connector
  • 1.25mm Pitch Miniature Crimping Connector UL-listed Grey Color Lvds Display Connector

    পণ্যের বিবরণ:

    Place of Origin: Dongguan, China(mainland)
    পরিচিতিমুলক নাম: HRT
    সাক্ষ্যদান: ISO9001/ ISO14001/UL/RoHS/REACH
    Model Number: A1252H-NP

    প্রদান:

    Minimum Order Quantity: 5000pcs
    মূল্য: USD0.005 to 0.5 per pcs
    Packaging Details: bags and carton or customized term
    Delivery Time: 5 to 8 working days after payment checked
    Payment Terms: TT, Western Union, PayPal, L/C
    Supply Ability: 28000K pcs per month
    এখন যোগাযোগ
    বিস্তারিত পণ্যের বর্ণনা
    Category: LVDS display connector Mated wafer: A1252 single series
    Positions: 30 pins Material: Nylon66,UL94V-0
    Secure lock structure: without Wire range: AWG#26 to #30

    1, Detailed form of product specification

    Features:

    1. Miniature Size
    2. Multi-contact
    3. Correspond to Automatic Mounting
    4. Integral Basic Function Despite Miniature Size
    5. UL Certifled



    Specifications:

    Connector Type: Contact, Socket, Header, Others
    Cable Assembly: No, Yes
    Safety Standards: UL
    Number of Positions: 2, 10, 11, 12, 13, 14, 15, 20, 30, 3, 40, 4, 5, 6, 7, 8, 9
    Number of Rows (Interface): 1, 2
    Mounting Pitch: 1.25 mm
    Contact Pitch: 1.25 mm
    Rated Current: 1 A
    Rated Voltage (AC): AC 150 V
    Mating/Unmating Cycles: 30, 50
    Mounting Style: SMT, THT
    Connector Orientation: Straight, Right angle
    Mounting Side: Standard on-Board
    Contact Plating: Gold, Tin, Tin-Copper
    Wire Termination Method: Crimping
    Recommended Wire Type: Discrete wire
    Recommended Min. Wire Size (AWG): AWG 32, 30
    Recommended Max. Wire Size (AWG): AWG 26, 30
    Operating Temperature (Max.): 85 ℃
    Operating Temperature (Min.) -35 ℃
    Glow Wire Compliant: Yes



    More characteristic of this part, please kindly check the following pictures. Wish you can get the right parts from our company. Thanks a lot!!!



    2, Related drawing and report

    1.25mm Pitch Miniature Crimping Connector UL-listed Grey Color Lvds Display Connector



    6. Environmental Performance And Others



    Test Description Procedure Requirement
    6-1 Temperature Rise Carrying rated current load.(Based upon UL 498) 30℃(Max.)
    6-2 Heat Resistance 85±2℃,96 hours (Based upon JIS C0021/MIL-STD-202 Method 108A Cond. A)

    Appearance No Damage.

    Contact Resistance 60mΩ (Max.)

    6-3 Cold Resistance -25±3℃,96 hours (Based upon JIS C0020)
    6-4 Humidity

    Temperature: 40±2℃

    Relative Humidity : 90~95%

    Duration: 96 hours

    (Based upon JIS C0022/MIL-STD-202 Method 103B Cond. B)

    Appearance No Damage.

    Contact Resistance 60mΩ (Max.)

    Insulation Resistance 50MΩ (Min.)

    Dielectric Withstanding Voltage Must meet 4-3

    6-5 Temperature Cycling

    5 cycles of:

    a) -55℃ 30 minutes

    b) +85℃ 30 minutes

    (Based upon JIS C0025)

    Appearance No Damage.

    Contact Resistance 60mΩ (Max.)

    6-6 Salt Spray Tin-plated 12 hours / Gold- plated 24 hours exposure to a salt spray from the 5±1% solution at 35±2℃. (Based upon JIS C0023/MIL-STD-202 Method 101C Cond. B)
    6-7 SO2 Gas

    24 hours exposure to 50±5ppm.

    SO2 gas at 40±2℃.

    6-8 NH3 Gas 40 minutes exposure to NH3 gas evaporating from 28% Ammonia solution.
    6-9 Solderability

    Soldering Time: 5±0.5 sec.

    Solder Temperature: 245±5℃

    Solder Wetting 95% of immersed area must show no voids, pin holes
    6-10

    Resistance to Soldering Heat

    (DIP)

    Solder pot method

    Soldering time: 10±0.5 sec.

    Solder Temperature: 260±5℃

    Solder iron method

    Soldering Time: 5±0.5 sec.

    Solder Temperature: 370℃ ~ 400℃

    Appearance No Damage.
    6-11 Resistance to Soldering Heat (SMT)

    When reflowing

    Refer to paragraph 8

    Solder iron method

    Soldering Time: 5±0.5 sec.

    Solder Temperature: 370℃ ~ 400℃

    Appearance No Damage.



    7. Actuator Insertion/Withdrawal Force

    DIP&Single Row SMT [Unit : kgf] Dual Row SMT [Unit : kgf]

    Circuits At Initial   Circuits At Initial
    Insertion (Max.) Withdrawal (Min.)   Insertion (Max.) Withdrawal (Min.)
    Single 0.30 0.03   Single 0.30 0.03
    02 2.00 0.50   2X05 3.50 0.90
    03 2.50 0.55   2X06 4.10 1.00
    04 3.00 0.60   2X07 4.70 1.10
    05 3.50 0.65   2X10 6.50 1.40
    06 4.00 0.70   2X15 9.50 1.90
    07 4.50 0.75   2X18 11.30 2.10
    08 5.00 0.80   2X20 12.50 2.40
    09 5.50 0.85   2X25 15.50 2.90
    10 6.00 0.90
    11 6.50 0.95
    12 7.00 1.00
    13 7.50 1.05
    14 8.00 1.10
    15 8.50 1.15



    3, Parts Application

    This product are widely used in household appliance, computer, communication device. Because we can controll NPL ratio under 1.0%, so our parts are trusted by famouse and international company like TPV, LeTV, Emerson, Amphenol Corporation, Skyworth, LuXshare, BYD etc. And the all products are certificated by REACH, UL, RoHS. Some parts are halogen free which is friendly to environment.



    1.25mm Pitch Miniature Crimping Connector UL-listed Grey Color Lvds Display Connector
