1.0mm Pitch SH wafer Connectors, top entry type SMT shrouded header with tin-plated pin

পণ্যের বিবরণ:

Place of Origin:	Dongguan, China(mainland)
পরিচিতিমুলক নাম:	HRT
সাক্ষ্যদান:	ISO9001/ ISO14001/UL/RoHS/REACH
Model Number:	A1001WV-S-NP

প্রদান:

Minimum Order Quantity:	5000 pcs
মূল্য:	USD0.001 to 0.005 per pcs
Packaging Details:	Tube(pipe) with outside paper carton
Delivery Time:	5 to 8 working days after payment checked
Payment Terms:	TT, Western Union, PayPal, L/C
Supply Ability:	28 million pcs per month

এখন যোগাযোগ

বিস্তারিত পণ্যের বর্ণনা

Color:	Black	Pitch:	1.0mm
Wafer materials:	PA6T, UL94V-0	Wire range:	AWG32# to 28#
Packaging Type:	Tube	Pins material:	Phosphor bronze or tin-plated
লক্ষণীয় করা:	Wafer Connector 2.0mm , Housing Connector

1.0mm Pitch Board To Wire Connectors , Smt Connector 180 Degree Type A1001WV

1, Detailed specification table of product

Detailed information

Basic information	Type	Wafer
	Circuits	From 2 pins to 24 pins
	Insulation O.D.	0.80mm(Max)
	Mating lock	None
	Finish terminal	Tin-plated or gold-flash
	Mated housing	A1001 series single row housing
	Mounting methods	SMT type
	Wafer material	Nylon 6T, UL94V-0
	Cap	Nylon 6T, UL94V-0
	Pin material	Phosphor bronze or tin-plated
	Solder tabs	Brass or tin-plated

Electrical properties	Current Rating	1A AC, DC
	Voltage Rating	50V AC, DC
	Contact Resistance	20mΩ Max
	Insulation Resistance	100mΩ min
	Withstanding Voltage	500V AC/minute

Mechanical properties	Temperature range	-25℃ to 85 ℃
	Terminal Insertion Force	0.50kgf (Max.)
	Terminal/Housing Retention Force	0.70kgf (Min.)
	Pin Retention Force	0.50kgf (Min.)
	Other information please kindly check the following picture.

2,These series product

Please kindly notice these series product, you can buy it as a set, then we will offer you reasonable price.

A1001 series product
Terminal	A1001-T-A

Housing	Dual housing	A1001H-2XNP & A1001HB-NP-1
	Single housing	A1001H-NP-1 & A1001H-NP-2

Wafer	Dual rows type	A1001WV-S-2XNP & A1001WR-S-2XNP & A1001WV-SF-2XNP
	Single row type	A1001WV-S-NP & A1001WR-S-NP

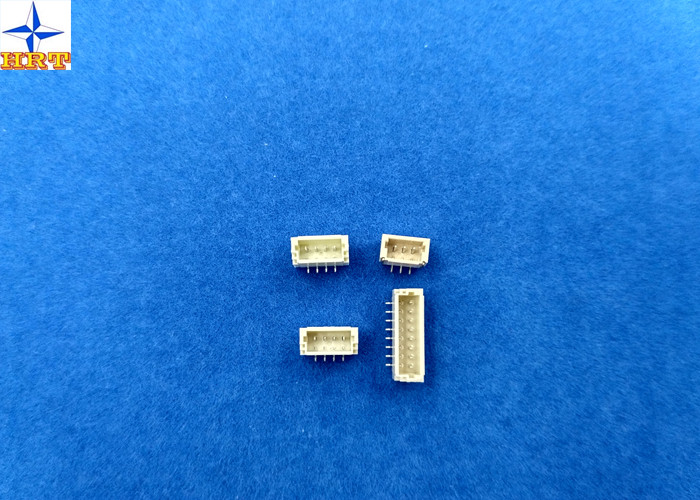

A1001 series demo

1.0mm Pitch SH wafer Connectors, top entry type SMT shrouded header with tin-plated pin

3,Corresponding engineering drawing & test report

Below file is our engineering drawing and testing report for further information. It's sure that it will be a

good reference for you to know this series parts clearly.

Drawing of dimension

1.0mm Pitch SH wafer Connectors, top entry type SMT shrouded header with tin-plated pin

3, FAQ

1) What's the delivery time?
Usually 5-8 days after payment received, longer for large order.

2) What’s the payment term?
Our payment terms: T/T, PayPal, Western Union, Moneygram, L/C, etc.

3) What's the shipping way?
Via DHL, FedEx, EMS, UPS, by air, by sea...etc.

4) Do you have after-sales service?
Yes. 8 hours online service

5) What is your guarantee for the goods?
We will replace 1:1 for the defective goods after sales.12 months guarantee after manufacturing.

4,The application of this series product
Please kindly check the below picture, you can know its' applicated range directly. Our products are mainly used in wire to wire connecting, power, Inside of some machines and some appliances, or power of PCB board. By the way, all of this series prodcut are complied with REACH, UL, RoHS srandard. In order to protect the evironment furthur, some parts are halogen free.

5, Delivery & Payment Way

We can offer multiple delivery way for you, it will let you to recieve our part in a short time. Besides, flexible payment terms are available to save the commision charges both for us.
